DMX512 LED STRIP

DMX SIGNAL DMX512 LED STRIP

DMX512IC

       The newest DMX512IC has the max485 inside the DMX512 ic,which following the principle of dmx512 protocol,with fIve cables:+5V,PI address writing wire,A(DA+)，B（DA-)，GND .This makes dmx led strips can be series connection and parallel connection.Another advantage is that they can be cut everywhere you want,and also you can connect them together without adding any max485 modules on the side of the strips.The most important point maybe this kind of dmx512ic make the strips can be dmx controller control without a decoder,and of course you can use the decoder to save more channels and control more pixels.
      With 5050 SMD high brightness led,you can achieve any perfect color effects.

DMX console control dmx signal led strip
http://youtu.be/TYZXBsXZ4aQ

32LED 32 DMX512IC INDIVIDUAL CONTROL DMX512 LED STRIP

We have developed three kinds of dmx512 led strip:32leds 32dmx512ics per meter individual control dmx led strip,each led can be different color.

10dmx512ics 30 leds dmx512 led strip,one ic control 3 leds led strip:

10dmx512ics 60 leds,one ic control six leds,10 pixels dmx512 led strip:

Connecting diagram of using dmx decoder to get more channels from dmx console to control dmx512 led strip

     Use DMX decoder to save more channels and control more dmx pixels make the control ability as large as 4096 pixels much more than 512.so as to control more dmx led strip.(more information,contact me about it)

DMX512 LED STRIP

APA102 LED soft board display ,apa104 ws2812b led pannel board

How to use led to create Fantasy effect instead of using display screen.

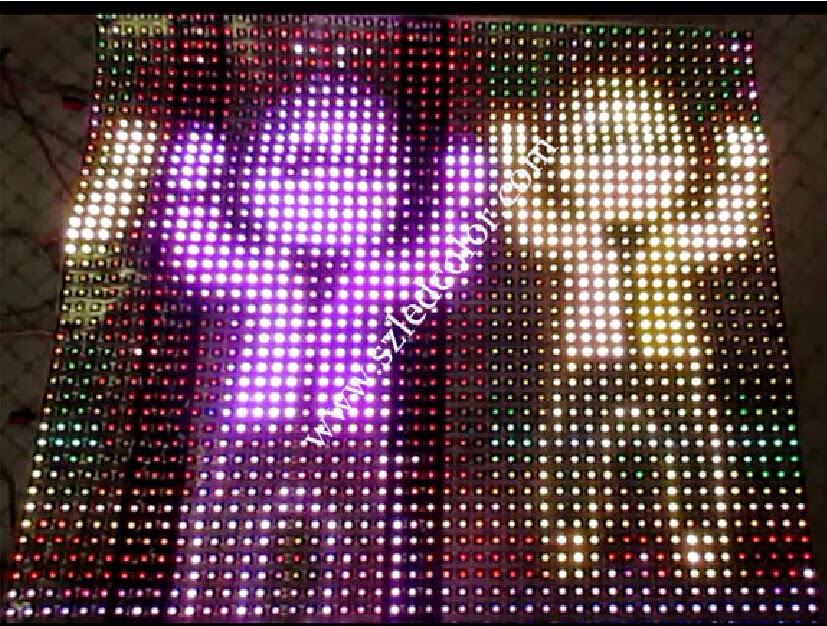

Here we just use smd leds and attach them on the soft pcb(the circuit on the board),as below picture we adopt 32bit apa102 leds,the circuit is on the big soft pcb board, so we call it apa102 led soft board display：
Its working voltage is just DC5V low voltage with low power consumption,as less as 30%.
High brightness with 256 gray level, can be seen from a very far distance,can show letters,numbers,pictures,animations and even videos,its magic effect which is very good for far advertisement to attract people pass by.

It is soft can be bend,and tha diameter and bend radius is 50mm,

Also it can put many pcs together to a bigger size display,as the video shows:

http://youtu.be/Xq3dv2QQgwE

When you connect to the controller and the power supply,you can show any effect you want:

http://youtu.be/41fCuNaGn50

The second way is to use the led strip to to video wall,which we call it flexible curtain display.

it is make of our flexible apa102 led strip,or apa104 led strip and ws2812b strip.it can be bent and carriable.

Can be any size or OEM. http://youtu.be/_wYkX1bQrf0

Best Built in ic full color APA102 led strip

Best Built in ic full color led strip APA102

Best Built in ic full color apa102 led strip:one data cable one independent clock cable which make it has much more rapid and stabler signal than other dream color smd 5050 rgb digital ws2811 ws2812b and apa104 led strip;

DC5V,Gray level:256;

Individual Control;

30,32,48,60,72,144 led per meter;

IP20,IP65,IP67,IP68 waterproof rate.

apa102 led strip

WS2811 WS2812B Led Strip and APA104 APA102 Led Strip Full Color Built-in IC

full color built in IC ws2811 ws2812b led strip and apa104 apa102 led strip

    You might know abput ws2812b led strip and ws2811 dream color led strip for it popular in 2013 as the first come out built-in ic digital rgb led strip, and each meter can arrange as large as 144 leds,each led is individually control.Though it can`t come up with non built in ic led strip,but they are much cheaper than ws2801 led strip and lpd8806 led strips,also let alone dmx512 led strip.so it is popular among customers.

WS2812B addressable led strip

Mechanical Dimensions

PIN configuration

PIN function

NO.	Symbol	Function description
1	VDD	Power supply LED
2	DOUT	Control data signal output
3	VSS	Ground
4	DIN	Control data signal input

LED characteristic parameter

Emitting color	Model	Wavelength(nm)	Luminous intensity(mcd)	Voltage(V)
Red	13CBAUP	620-625	390-420	2.0-2.2
Green	13CGAUP	522-525	660-720	3.0-3.4
Blue	10R1MUX	465-467	180-200	3.0-3.4

APA102 addressable led strip

     Maybe you will consider that there are ws2811 and ws2812b why we still need apa104 and apa102 led strip,i am not familiar about them,do they really as good as you say? you might habitually refuse to know about them,convinced that hype advertising,frankly speaking if you think it like that you might kill great products and miss this significant business chance.it is better to see for oneself rather than to hear for many times.
General Characteristics :built in ic,individual control,DC5V input voltage,20mA current, gray scale is 256,but what you need to know is the difference,that is the Point:one data cable,one independent clock cable for built in ic,refresh speed is faster,the signal is much more stable and travel much faster than other built in ic leds.

PRODUCT  SPECIFICATIONS

（PIN Description）

NO.	PIN NAME	I/O	FUNCTION
1	VDD	P	Power is terminal
2	VREG	O	4.5V regulator output
3	CKO	O	Series with the output clock signal
4	SDO	O	Series with the output data
5	VEN	I	Self-test function selection
6	CSEL	I	Invert the clock signal cascade
7	POLAR	I	Positive and negative output options
8	OSCI	I	Oscillator input
9	SDI	I	Series with the input data
10	CKI	I	Series with the input clock signal
11	REXT	I	Constant current source to adjust side
12	VSS	P	Power supply negative terminal
13	G	O	Green LED output
14	R	O	Red LED output
15	B	O	Blue LED output

The data format:

apa102 led chip

   Also,apa104 has the same parameter and function as ws2812b, but with much cheaper price,it time for apa104, apa102 led strip.It cannot be denied that,ws2811 ws2812b and ws2801 led strip still have a large market share for a while.

apa102 led strip
